Ensuring Rock-Solid PostgreSQL Uptime
A Guide to KubeDB’s High Availability and Auto-Failover
In today’s data-driven world, database downtime is not just an inconvenience; it can be a critical business failure. For teams running stateful applications on Kubernetes, ensuring the resilience of their databases is paramount. This is where KubeDB steps in, offering a robust, cloud-native way to manage PostgreSQL on Kubernetes.
One of KubeDB’s most powerful features is its built-in support for High Availability (HA) and automated failover. The KubeDB operator continuously monitors the health of your PostgreSQL cluster and along with the db sidecar injected for maintaining failover, it can automatically respond to failures, ensuring your database remains available with minimal disruption.
This article will guide you through KubeDB’s automated failover capabilities for PostgreSQL. We will set up an HA cluster and then simulate a leader failure to see KubeDB’s auto-recovery mechanism in action.
You will see how fast the failover happens when it’s truly necessary. Failover in KubeDB-managed PostgreSQL will generally happen within 2–10 seconds depending on your cluster networking. There is an exception scenario that we discussed later in this doc where failover might take a bit longer up to 45 seconds. But that is a bit rare though.
Before You Start
To follow along with this tutorial, you will need:
- A running Kubernetes cluster.
- KubeDB installed in your cluster.
- kubectl command-line tool configured to communicate with your cluster.
Step 1: Create a High-Availability PostgreSQL Cluster
First, we need to deploy a PostgreSQL cluster configured for High Availability. Unlike a Standalone instance, a HA cluster consists of a primary pod and one or more standby pods that are ready to take over if the leader fails.
Save the following YAML as pg-ha-demo.yaml. This manifest defines a 3-node PostgreSQL cluster with streaming replication enabled.
apiVersion: kubedb.com/v1
kind: Postgres
metadata:
name: pg-ha-demo
namespace: demo
spec:
replicas: 3
storageType: Durable
podTemplate:
spec:
containers:
- name: postgres
resources:
requests:
cpu: "200m"
memory: "256Mi"
storage:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 7Gi
version: "17.2"
Now, create the namespace and apply the manifest:
# Create the namespace if it doesn't exist
kubectl create ns demo
# Apply the manifest to deploy the cluster
kubectl apply -f pg-ha-demo.yaml
You can monitor the status until all pods are ready:
watch kubectl get pg,petset,pods -n demo
See the database is ready.
➤ kubectl get pg,petset,pods -n demo
NAME VERSION STATUS AGE
postgres.kubedb.com/pg-ha-demo 17.2 Ready 4m45s
NAME AGE
petset.apps.k8s.appscode.com/pg-ha-demo 4m41s
NAME READY STATUS RESTARTS AGE
pod/pg-ha-demo-0 2/2 Running 0 4m41s
pod/pg-ha-demo-1 2/2 Running 0 2m45s
pod/pg-ha-demo-2 2/2 Running 0 2m39s
Inspect who is primary and who is standby.
# you can inspect who is primary
# and who is secondary like below
➤ kubectl get pods -n demo --show-labels | grep role
pg-ha-demo-0 2/2 Running 0 20m app.kubernetes.io/component=database,app.kubernetes.io/instance=pg-ha-demo,app.kubernetes.io/managed-by=kubedb.com,app.kubernetes.io/name=postgreses.kubedb.com,apps.kubernetes.io/pod-index=0,controller-revision-hash=pg-ha-demo-6c5954fd77,kubedb.com/role=primary,statefulset.kubernetes.io/pod-name=pg-ha-demo-0
pg-ha-demo-1 2/2 Running 0 19m app.kubernetes.io/component=database,app.kubernetes.io/instance=pg-ha-demo,app.kubernetes.io/managed-by=kubedb.com,app.kubernetes.io/name=postgreses.kubedb.com,apps.kubernetes.io/pod-index=1,controller-revision-hash=pg-ha-demo-6c5954fd77,kubedb.com/role=standby,statefulset.kubernetes.io/pod-name=pg-ha-demo-1
pg-ha-demo-2 2/2 Running 0 18m app.kubernetes.io/component=database,app.kubernetes.io/instance=pg-ha-demo,app.kubernetes.io/managed-by=kubedb.com,app.kubernetes.io/name=postgreses.kubedb.com,apps.kubernetes.io/pod-index=2,controller-revision-hash=pg-ha-demo-6c5954fd77,kubedb.com/role=standby,statefulset.kubernetes.io/pod-name=pg-ha-demo-2
The pod having kubedb.com/role=primary
is the primary and kubedb.com/role=standby
are the standby’s.
Lets create a table in the primary.
# find the primary pod
➤ kubectl get pods -n demo --show-labels | grep primary | awk '{ print $1 }'
pg-ha-demo-0
# exec into the primary pod
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# create table hello(id int);
CREATE TABLE
Verify the table creation in standby’s.
➤ kubectl exec -it -n demo pg-ha-demo-1 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-1:/$ psql
psql (17.2)
Type "help" for help.
postgres=# \dt
List of relations
Schema | Name | Type | Owner
--------+--------------------+-------+----------
public | hello | table | postgres # this was created in primary earlier, so replication working
public | kubedb_write_check | table | postgres
(2 rows)
Step 2: Simulating a Failover
Before simulating failover, let’s discuss how we handle these failover scenarios in KubeDB-managed Postgresql. We use sidecar container with all db pods, and inside that sidecar container, we use raft protocol to detect the viable primary of the postgresql cluster. Raft will choose a db pod as a leader of the postgresql cluster, we will check if that pod can really run as a leader. If everything is good with that chosen pod, we will run it as primary. This whole process of failover generally takes less than 10 seconds to complete. So you can expect very rapid failover to ensure high availability of your postgresql cluster.

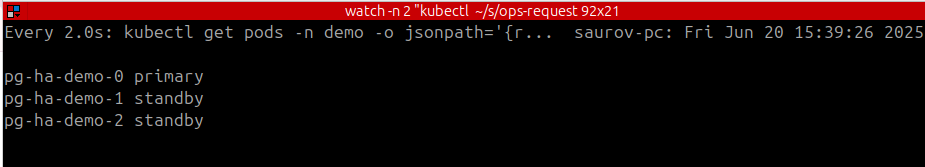

Now current running primary is pg-ha-demo-0
. Let’s open another terminal and run the command below.
watch -n 2 "kubectl get pods -n demo -o jsonpath='{range .items[*]}{.metadata.name} {.metadata.labels.kubedb\\.com/role}{\"\\n\"}{end}'"

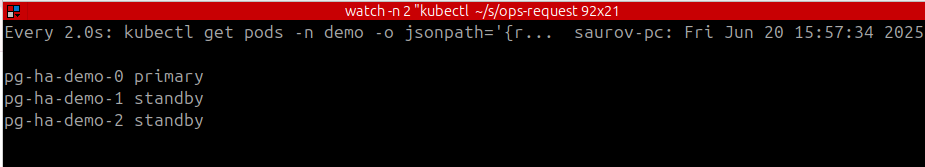

It will show current pg cluster roles.
Case 1: Delete the current primary
Lets delete the current primary and see how the role change happens almost immediately.
➤ kubectl delete pods -n demo pg-ha-demo-0
pod "pg-ha-demo-0" deleted

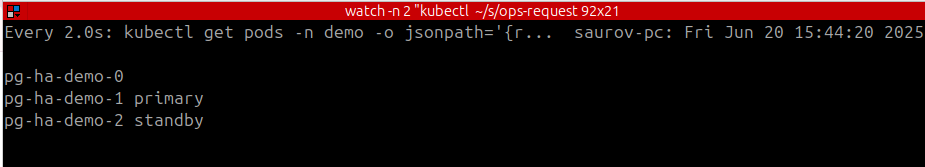

You see almost immediately the failover happened. Here’s what happened internally:
- Distributed raft algorithm implementation is running 24 * 7 in your each db sidecar. You can configure this behavior as shown below.
- As soon as
pg-ha-demo-0
was being deleted and raft insidepg-ha-demo-0
senses the termination, it immediately switches the leadership to any other viable leader before termination. - In our case, raft inside
pg-ha-demo-1
got the leadership. - Now this leader switch only means raft leader switch, not the database leader switch(aka failover) yet. So
pg-ha-demo-1
still running as replica. It will be primary after the next step. - Once raft sidecar inside
pg-ha-demo-1
see it has become leader of the cluster, it initiates the database failover process and start running as primary. - So, now
pg-ha-demo-1
is running as primary.
# You can find this part in your db yaml by running
# kubectl get pg -n demo pg-ha-demo -oyaml
# under db.spec section
# vist below link for more information
# https://github.com/kubedb/apimachinery/blob/97c18a62d4e33a112e5f887dc3ad910edf3f3c82/apis/kubedb/v1/postgres_types.go#L204
leaderElection:
electionTick: 10
heartbeatTick: 1
maximumLagBeforeFailover: 67108864
period: 300ms
transferLeadershipInterval: 1s
transferLeadershipTimeout: 1m0s
Now we know how failover is done, let’s check if the new primary is working.
➤ kubectl exec -it -n demo pg-ha-demo-1 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-1:/$ psql
psql (17.2)
Type "help" for help.
postgres=# create table hi(id int);
CREATE TABLE # See we were able to create the database. so failover was successful.
postgres=#
You will see the deleted pod (pg-ha-demo-0) is brought back by the kubedb operator and it is now assigned to standby role.
Lets check if the standby(pg-ha-demo-0
) got the updated data from new primary pg-ha-demo-1
.
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# \dt
List of relations
Schema | Name | Type | Owner
--------+--------------------+-------+----------
public | hello | table | postgres
public | hi | table | postgres # this was created in the new primary
public | kubedb_write_check | table | postgres
(3 rows)
Case 2: Delete the current primary and One replica
➤ kubectl delete pods -n demo pg-ha-demo-1 pg-ha-demo-2
pod "pg-ha-demo-1" deleted
pod "pg-ha-demo-2" deleted

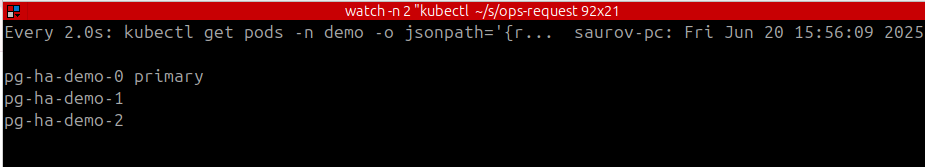

Again we can see the failover happened pretty quickly.
After 10-30 second, the deleted pods will be back and will have its role.
Lets validate the cluster state from new primary(pg-ha-demo-0
).
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# select * from pg_stat_replication;
pid | usesysid | usename | application_name | client_addr | client_hostname | client_port | backend_start | backend_xmin | state | sent_lsn | write_lsn | flush_lsn | replay_lsn | write_lag | flush_lag | replay_lag | sync_priority | sync_state | reply_time
------+----------+----------+------------------+-------------+-----------------+-------------+-------------------------------+--------------+-----------+-----------+-----------+-----------+------------+-----------------+-----------------+-----------------+---------------+------------+-------------------------------
1098 | 10 | postgres | pg-ha-demo-1 | 10.42.0.191 | | 49410 | 2025-06-20 09:56:36.989448+00 | | streaming | 0/70016A8 | 0/70016A8 | 0/70016A8 | 0/70016A8 | 00:00:00.000142 | 00:00:00.00066 | 00:00:00.000703 | 0 | async | 2025-06-20 09:59:40.217223+00
1129 | 10 | postgres | pg-ha-demo-2 | 10.42.0.192 | | 35216 | 2025-06-20 09:56:39.042789+00 | | streaming | 0/70016A8 | 0/70016A8 | 0/70016A8 | 0/70016A8 | 00:00:00.000219 | 00:00:00.000745 | 00:00:00.00079 | 0 | async | 2025-06-20 09:59:40.217308+00
(2 rows)
Case3: Delete any of the replica’s
Let’s delete both of the standby’s.
kubectl delete pods -n demo pg-ha-demo-1 pg-ha-demo-2
pod "pg-ha-demo-1" deleted
pod "pg-ha-demo-2" deleted

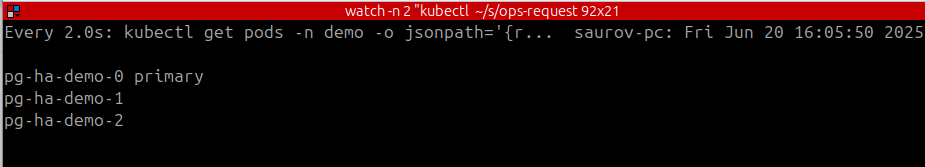

Shortly both of the pods will be back with its role.
Lets verify cluster state.
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# select * from pg_stat_replication;
pid | usesysid | usename | application_name | client_addr | client_hostname | client_port | backend_start | backend_xmin | state | sent_lsn | write_lsn | flush_lsn | replay_lsn | write_lag | flush_lag | replay_lag | sync_priority | sync_state | reply_time
------+----------+----------+------------------+-------------+-----------------+-------------+-------------------------------+--------------+-----------+-----------+-----------+-----------+------------+-----------------+-----------------+-----------------+---------------+------------+-------------------------------
5564 | 10 | postgres | pg-ha-demo-2 | 10.42.0.194 | | 51560 | 2025-06-20 10:06:26.988807+00 | | streaming | 0/7014A58 | 0/7014A58 | 0/7014A58 | 0/7014A58 | 00:00:00.000178 | 00:00:00.000811 | 00:00:00.000848 | 0 | async | 2025-06-20 10:07:50.218299+00
5572 | 10 | postgres | pg-ha-demo-1 | 10.42.0.193 | | 36158 | 2025-06-20 10:06:27.980841+00 | | streaming | 0/7014A58 | 0/7014A58 | 0/7014A58 | 0/7014A58 | 00:00:00.000194 | 00:00:00.000818 | 00:00:00.000895 | 0 | async | 2025-06-20 10:07:50.218337+00
(2 rows)
Case 4: Delete both primary and all replicas
Let’s delete all the pods.

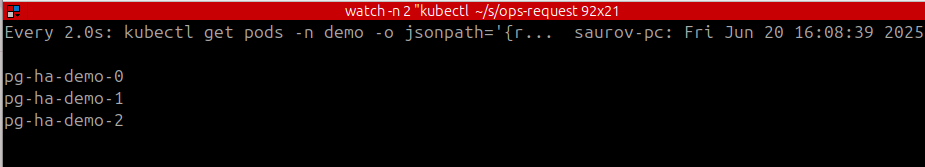

➤ kubectl delete pods -n demo pg-ha-demo-0 pg-ha-demo-1 pg-ha-demo-2
pod "pg-ha-demo-0" deleted
pod "pg-ha-demo-1" deleted
pod "pg-ha-demo-2" deleted

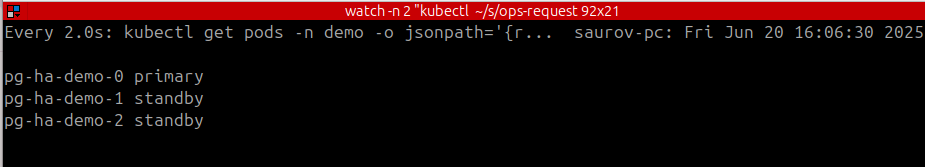

Within 20-30 second, all of the pod should be back.
Lets verify the cluster state now.
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# select * from pg_stat_replication;
pid | usesysid | usename | application_name | client_addr | client_hostname | client_port | backend_start | backend_xmin | state | sent_lsn | write_lsn | flush_lsn | replay_lsn | write_lag | flush_lag | replay_lag | sync_priority | sync_state | reply_time
-----+----------+----------+------------------+-------------+-----------------+-------------+-------------------------------+--------------+-----------+-----------+-----------+-----------+------------+-----------------+-----------------+-----------------+---------------+------------+-------------------------------
132 | 10 | postgres | pg-ha-demo-2 | 10.42.0.197 | | 34244 | 2025-06-20 10:09:20.27726+00 | | streaming | 0/9001848 | 0/9001848 | 0/9001848 | 0/9001848 | 00:00:00.00021 | 00:00:00.000841 | 00:00:00.000894 | 0 | async | 2025-06-20 10:11:02.527633+00
133 | 10 | postgres | pg-ha-demo-1 | 10.42.0.196 | | 40102 | 2025-06-20 10:09:20.279987+00 | | streaming | 0/9001848 | 0/9001848 | 0/9001848 | 0/9001848 | 00:00:00.000225 | 00:00:00.000848 | 00:00:00.000905 | 0 | async | 2025-06-20 10:11:02.527653+00
(2 rows)
We make sure the pod with highest lsn (you can think lsn as the highest data point available in your cluster) always run as primary, so if a case occur where the pod with highest lsn is being terminated, we will not perform the failover until the highest lsn pod is back online. So in a case, where that highest lsn primary is not recoverable, read this to do a force failover.
A Guide to Postgres Backup And Restore
You can configure Backup and Restore following the below documentation.
Youtube video Links: link
A Guide to Postgres PITR
Documentaion Link: PITR
Concepts and Demo: link
Basic Demo: link
Full Demo: link
A Guide to Handling Postgres Storage
It is often possible that your database storage become full and your database has stopped working. We have got you covered. You just apply a VolumeExpansion PostgresOpsRequest
and your database storage will be increased, and the database will be ready to use again.
Disaster Scenario and Recovery
Scenario
You deploy a PostgreSQL
database. The database was running fine. Someday, your database storage becomes full. As your postgres process can’t write to the filesystem,
clients won’t be able to connect to the database. Your database status will be Not Ready
.
Recovery
In order to recover from this, you can create a VolumeExpansion
PostgresOpsRequest
with expanded resource requests.
As soon as you create this, KubeDB will trigger the necessary steps to expand your volume based on your specifications on the PostgresOpsRequest
manifest. A sample PostgresOpsRequest
manifest for VolumeExpansion
is given below:
apiVersion: ops.kubedb.com/v1alpha1
kind: PostgresOpsRequest
metadata:
name: pgops-vol-exp-ha-demo
namespace: demo
spec:
apply: Always
databaseRef:
name: pg-ha-demo
type: VolumeExpansion
volumeExpansion:
mode: Online # see the notes, your storageclass must support this mode
postgres: 20Gi # expanded resource
For more details, please check the full section here .
Note: There are two ways to update your volume: 1.Online 2.Offline. Which Mode to choose? It depends on your
StorageClass
. If your storageclass supports online volume expansion, you can go with it. Otherwise, you can go withOfline
Volume Expansion.
A Guide to Postgres Ops Requests
A PostgresOpsRequest
lets you manage various database operational and day-2 features. For example, managing Database TLS, custom configuration, version upgrade, scaling, and so on.
Managing Postgresql database TLS
If you want to use encrypted connection or certificate-based authentication for clients, you can use PostgresOpsRequest
. Based on your requirements, you can add, remove or rotate tls certificates. For more information, please follow the documentation section link1
, link2
.
Upgrade Postgresql Version
Upgrading a Postgresql version can be a nightmare for the DBA’s. We make this process a lot easier. You can apply a PostgresOpsRequest
and your database will be upgraded to your desired versions. For more information, check this
section of documentation.
Note: Before Upgrading, make sure your current version and the version you want to upgrade to, has the same base image. Also do not try to make a major jump where the major version difference is greater than one.
Scaling Postgresql Database
Being able to scale the database both horizontally and vertically is a blessing for database to handle more incoming loads. But sadly, just increasing the database replica should not work for most of the databases. Because the databases need to join the cluster and perform a few other database-specific tasks before joining the cluster. Don’t worry, we take care of those for you. You simply need to create a PostgresOpsRequest
, and the scaling will be handled automatically.
Horizontal Scaling
For scaling Horizontally, follow this section of the documentation.
Vertical Scaling
For vertical scaling, follow this section.
Auto Scaling
We also support autoscaling! You can configure auto-scaling your database and forget about the loads that your system might face during peak hours!
To set up and configure, visit here for compute autoscaling and here for storage.
VolumeExpansion of Postgresql Database
If you need to increase your database storage, you can use VolumeExpansion
PostgresOpsRequest
.
For more details, please check the full section here .
Re-configure Postgresql configuration parameters
Do you need to update your PostgreSQL shared_buffers
, max_connections
, or other parameters? You can use our Reconfigure PostgresOpsRequest
. Follow here
Remote Replica Support
Do you want to have a backup data center where you want to run your postgresql database to recover from a data center failure as soon as possible?
The concept of a remote replica is as follows:
- You create two data centers. Let’s say one is in Singapore (client-serving) and the other is in London (disaster recovery cluster).
- You create a client facing Postgresql Database using Kubedb in Singapore, and then create another Postgresql(as remote replica) in London.
- Kubedb will connect this remote replica with the primary cluster (i.e Singapore) so that in case of a disaster in the Singapore cluster, you can promote the London cluster to serve the client faster.
For more information, follow here
Monitoring Postgresql Database
When uninterrupted service for your application and database matters, monitoring is a must for your cluster. Follow here for more.
CleanUp
kubectl delete pg -n demo pg-ha-demo
What Next?
Please try the latest release and give us your valuable feedback.
If you want to install KubeDB, please follow the installation instruction from here .
If you want to upgrade KubeDB from a previous version, please follow the upgrade instruction from here .
Support
To speak with us, please leave a message on our website .
To receive product announcements, follow us on Twitter .
If you have found a bug with KubeDB or want to request for new features, please file an issue .
